The new product developed by our company, punching step plate, is suitable for maintenance platform, pedestrian corridor, walkway and steel frame operation platform with small load. It is mainly made of carbon structural steel plate, which enhances the load capacity of the plate and increases the pedestrian anti-skid coefficient after punching. At 25cm × This component can be used within 25cm area and under the condition that the load does not exceed 2000N.
In terms of cost, the punching step board produced by our company uses less materials and has low cost. Compared with ordinary steel grating, the cost is reduced by about one third. Practice has proved that the product is economical and practical, and has been recognized by the majority of users.
The specifications are as follows:
Recommended maximum length of tread plate (mm) | |||
Punching plate size | h (45) x d ( 3) | h (45) x d ( 3) | h (45) x d ( 3) |
PT1 series | 700 | 800 | 850 |
PT2 series | 700 | 800 | 850 |

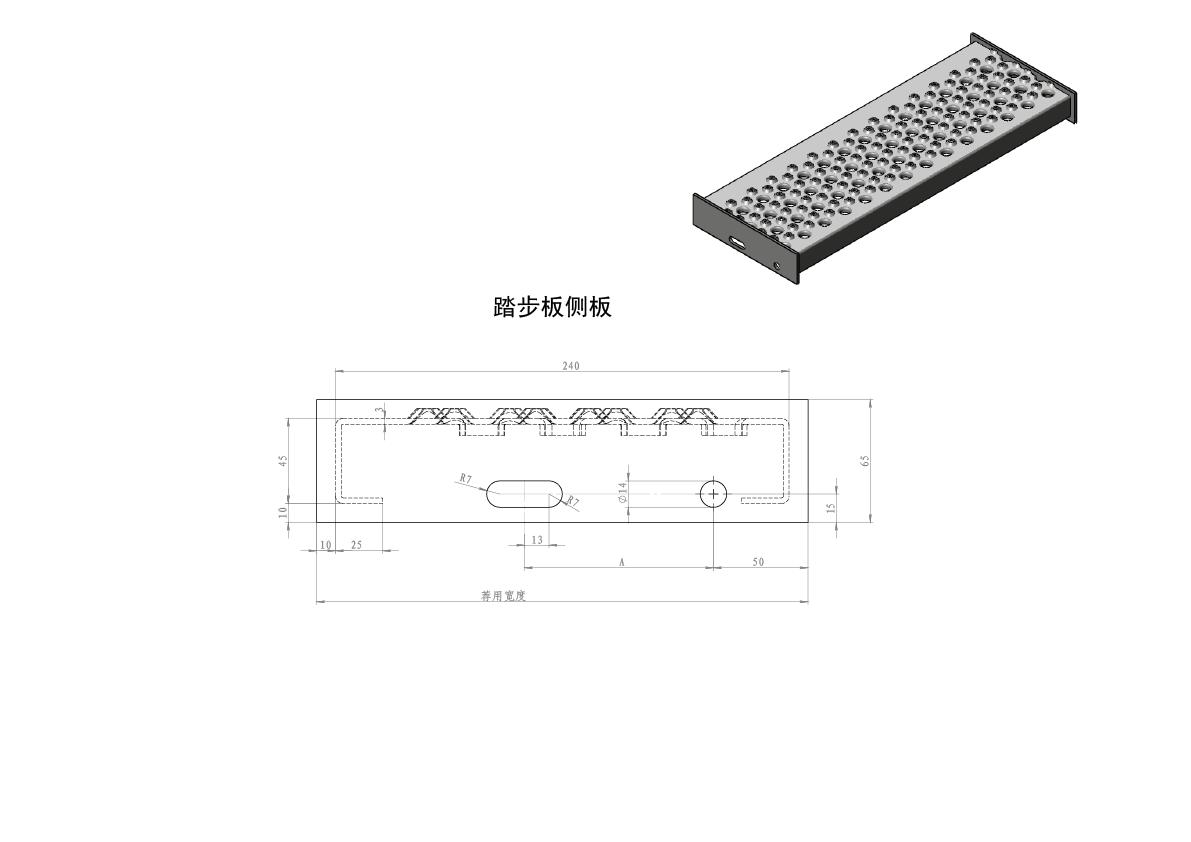

Recommended width and margin (mm) (based on 3mm thick steel plate) | |
| series | 240 x 77.5 |
| series | 300 x 65 |
| Bolt connection (center distance of bolt hole a) | |
| PT1 series | 100 |
| PT2 series | 150 |
(Note: in addition to the above dimensions, they can also be specified arbitrarily according to customer needs)
